title: "Lime Bike Dashboard in Shiny πβπ©"
title-block-banner: true
format:
html:
code-fold: true
code-summary: "Show the code"
code-tools: true
toc: true
number-sections: true
highlight-style: github
link-citations: true
image: "Overview.png"
---
# Project context
```{r, message=FALSE}
pacman::p_load(shiny,highcharter,readr,lubridate,tidyverse,leaflet,leaflet.extras,htmltools,scales,viridis,shinyWidgets,broom)
trips <- read_csv("trips.csv")
geo_coded <- read_csv("geo_coded.csv")
trips %>%
filter(STATUS == "completed" & !is.na(STARTED_AT)) %>%
mutate(STARTED_AT = substr(STARTED_AT,start=1,stop=19),
COMPLETED_AT = substr(COMPLETED_AT,start=1,stop=19)) %>%
mutate(start_date = lubridate::as_datetime(STARTED_AT),
end_date = lubridate::as_datetime(COMPLETED_AT),
day_of_week = wday(start_date, label = TRUE),
month = month(start_date, label = TRUE)) %>%
mutate(time = as.integer(difftime(end_date,start_date,units = "mins"))) %>%
select(start_date, end_date) %>%
mutate(year = year(start_date),
month = month(start_date, label = TRUE),
day_of_week = wday(start_date, label = TRUE),
quarter = quarter(start_date)) %>%
cbind(geo_coded) %>%
as_tibble()-> to_map
trips %>%
filter(STATUS == "completed" & !is.na(STARTED_AT)) %>%
mutate(STARTED_AT = substr(STARTED_AT,start=1,stop=19),
COMPLETED_AT = substr(COMPLETED_AT,start=1,stop=19)) %>%
mutate(start_date = lubridate::as_datetime(STARTED_AT),
end_date = lubridate::as_datetime(COMPLETED_AT),
day_of_week = wday(start_date, label = TRUE),
month = month(start_date, label = TRUE),quarter=quarter(start_date)) %>%
mutate(time = as.integer(difftime(end_date,start_date,units = "mins"))) %>%
select(start_date, end_date, DISTANCE_METERS,COST_AMOUNT_CENTS,time,quarter) %>%
mutate(year = year(start_date),
month = month(start_date, label = TRUE),
day_of_week = wday(start_date, label = TRUE),
total_distance = DISTANCE_METERS/1000,
total_cost = COST_AMOUNT_CENTS/100,
total_time = time/60,
speed = ((DISTANCE_METERS/1000)/time)*60,
total_rides =n()) %>%
group_by(year,month,day_of_week,quarter) %>%
summarise(total_dist = sum(total_distance),
total_cost = sum(total_cost),
total_time = sum(total_time),
total_rides = n()) %>%
ungroup() ->trips
```
This blog post builds on a previous project that uses flexdashboard to visualise Lime bike data. [Whilst the dashboard was not fully interactive, it had some interactive elements.](https://jokasan.github.io/Lime_Dash/) In this blog post I wanted to iterate on the visualisations from the previous dashboard and make it far more interactive using Shiny. [To access the final dashboard please follow this link](https://nind.shinyapps.io/LimexFoothi/).
## Part 1: The UI component
The first part of the transition was to understand what elements to include in the UI component of the Shiny app. In it's raw format the data didn't have a lot of categorical variables that could be used to filter the data. However, a few were generated: `year` and `quarter`, yielding the combinations below:
```{r}
trips %>%
select(year,quarter) %>%
unique()
```
These were used to filter the 4 visuals on the dashboard. Where trips is the dataset, below are the specifications for the filters:
```{r, eval=FALSE}
sidebarLayout(
sidebarPanel(
titlePanel("Foothi x Lime πβπ©"),
selectInput(
inputId = "inYearMin",
label = "Start year:",
choices = unique(trips$year)[1:length(unique(trips$year)) - 1],
selected = min(trips$year)
),
selectInput(
inputId = "inYearMax",
label = "End year:",
choices = unique(trips$year)[2:length(unique(trips$year))],
selected = max(trips$year)
),
checkboxGroupButtons(
inputId = "inQuarter",
label = "Select Quarter",
choices = list("Q1" = 1, "Q2" = 2, "Q3" = 3, "Q4" = 4),
selected = (1:4)
),
width = 3
```

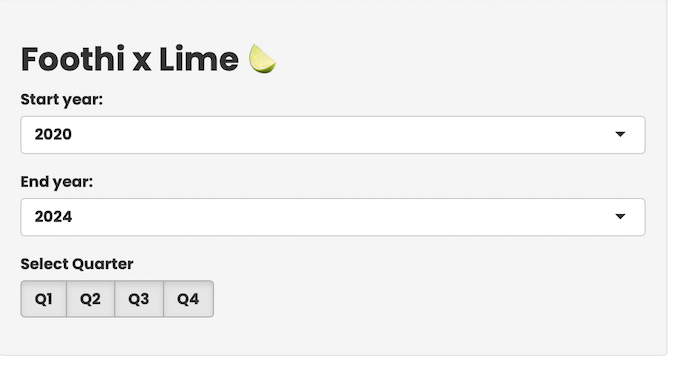

This yields the following filtering pane:
Next, we will have to create the call out values/key KPIs to highlight, this also being part of the UI component, we call them in the `mainPanel()` part of the UI specification:
```{r,eval=FALSE}
mainPanel(
tags$h3("Latest stats:"),
tags$div(
tags$div(
tags$p("# Rides:"),
textOutput(outputId = "outNRides")
) %>% tagAppendAttributes(class = "stat-card"),
tags$div(
tags$p("Total Cost:"),
textOutput(outputId = "outTotalCost")
) %>% tagAppendAttributes(class = "stat-card"),
tags$div(
tags$p("Total Time:"),
textOutput(outputId = "outTotalTime")
) %>% tagAppendAttributes(class = "stat-card"),
tags$div(
tags$p("Total Distance:"),
textOutput(outputId = "outTotalDist")
) %>% tagAppendAttributes(class = "stat-card")
) %>% tagAppendAttributes(class = "stat-card-container")
```

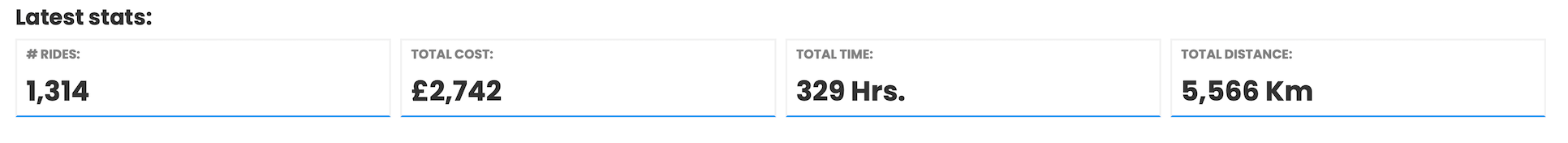

This in turn creates the components for the KPIs:
 Finally, we have to create the UI components for the visualisations. This is also specified in the `mainPanel()` part of the UI specification:
```{r, eval=FALSE}
tags$div(
tags$h3("Summary stats:"),
tags$div(
tags$div(
highchartOutput(outputId = "chartDistByYear", height = 500)
) %>% tagAppendAttributes(class = "chart-card"),
tags$div(
highchartOutput(outputId = "chartCostByYear", height = 500)
) %>% tagAppendAttributes(class = "chart-card"),
) %>% tagAppendAttributes(class = "base-charts-container")
) %>% tagAppendAttributes(class = "card-container"),
tags$div(
tags$h3("Heatmap of Locations & Predicted Cost:"),
tags$div(
tags$div(
leafletOutput(outputId = "tripMap", height = 500)
) %>% tagAppendAttributes(class = "chart-card"),
tags$div(
highchartOutput(outputId = "modelledCost", height = 500)
) %>% tagAppendAttributes(class = "chart-card"),
) %>% tagAppendAttributes(class = "base-charts-container")
) %>% tagAppendAttributes(class = "card-container"))
%>% tagAppendAttributes(class = "card-container")
)
)
```
Luckily, deciding what charts to include was not too difficult, as the previous dashboard had already identified the most important ones. The only difference was that the color schemes were not able to be fully reproduced due to some compatibility issues, but otherwise it was a smooth transition. Putting it all together you get the UI component of the Shiny app:
```{r, eval=FALSE}
ui <- fluidPage(
tags$head(
tags$link(rel = "stylesheet", type = "text/css", href = "styles.css")
),
sidebarLayout(
sidebarPanel(
titlePanel("Foothi x Lime πβπ©"),
selectInput(
inputId = "inYearMin",
label = "Start year:",
choices = unique(trips1$year)[1:length(unique(trips1$year)) - 1],
selected = min(trips1$year)
),
selectInput(
inputId = "inYearMax",
label = "End year:",
choices = unique(trips1$year)[2:length(unique(trips1$year))],
selected = max(trips1$year)
),
checkboxGroupButtons(
inputId = "inQuarter",
label = "Select Quarter",
choices = list("Q1" = 1, "Q2" = 2, "Q3" = 3, "Q4" = 4),
selected = (1:4)
),
width = 3
),
mainPanel(
tags$h3("Latest stats:"),
tags$div(
tags$div(
tags$p("# Rides:"),
textOutput(outputId = "outNRides")
) %>% tagAppendAttributes(class = "stat-card"),
tags$div(
tags$p("Total Cost:"),
textOutput(outputId = "outTotalCost")
) %>% tagAppendAttributes(class = "stat-card"),
tags$div(
tags$p("Total Time:"),
textOutput(outputId = "outTotalTime")
) %>% tagAppendAttributes(class = "stat-card"),
tags$div(
tags$p("Total Distance:"),
textOutput(outputId = "outTotalDist")
) %>% tagAppendAttributes(class = "stat-card")
) %>% tagAppendAttributes(class = "stat-card-container"),
tags$div(
tags$h3("Summary stats:"),
tags$div(
tags$div(
highchartOutput(outputId = "chartDistByYear", height = 500)
) %>% tagAppendAttributes(class = "chart-card"),
tags$div(
highchartOutput(outputId = "chartCostByYear", height = 500)
) %>% tagAppendAttributes(class = "chart-card"),
) %>% tagAppendAttributes(class = "base-charts-container")
) %>% tagAppendAttributes(class = "card-container"),
tags$div(
tags$h3("Heatmap of Locations & Predicted Cost:"),
tags$div(
tags$div(
leafletOutput(outputId = "tripMap", height = 500)
) %>% tagAppendAttributes(class = "chart-card"),
tags$div(
highchartOutput(outputId = "modelledCost", height = 500)
) %>% tagAppendAttributes(class = "chart-card"),
) %>% tagAppendAttributes(class = "base-charts-container")
) %>% tagAppendAttributes(class = "card-container"))
%>% tagAppendAttributes(class = "card-container")
)
)
```
# Part 2: The Server Component
The server component is where the magic happens. This is where the data is processed and made reactive, such that it filters through for the visualisations. For this we broke it down into a few key parts, the first was the data for the KPI cards. To do that we assigned the summary metrics to a new reactive data frame, where the filters would slice the data:
```{r, eval=FALSE}
# Reactive data for the KPI cards:
data_cards <- reactive({
trips1 %>%
filter(
between(year, as.integer(input$inYearMin), as.integer(input$inYearMax)),
quarter %in% input$inQuarter
) %>%
summarise(
totalRides = sum(total_rides), # Number of rides
totalCost = sum(total_cost), # Total cost
totalTime = sum(total_time), # Total time
totalDist = sum(total_dist) # Total distance
)
})
# Redndering the KPI cards:
output$outNRides <- renderText({
scales::comma(data_cards()$totalRides)
})
output$outTotalCost <- renderText({
paste0("Β£",scales::comma(round(data_cards()$totalCost,2)))
})
output$outTotalTime <- renderText({
paste0(round(data_cards()$totalTime)," Hrs.")
})
output$outTotalDist <- renderText({
paste0(scales::comma(round(data_cards()$totalDist))," Km")
})
```
The next part involved doing the same but for the charts. We created a reactive data frame for the charts, which would be filtered by the input parameters, for the cost by year chart:
```{r,eval=FALSE}
# Reactive data for the charts:
data_charts <- reactive({
trips1 %>%
filter(
between(year, as.integer(input$inYearMin), as.integer(input$inYearMax)),
quarter %in% input$inQuarter
) %>%
group_by(month) %>%
summarise(
total_cost = round(sum(total_cost), 1),
total_dist = round(sum(total_dist), 1)
)
})
# Rendering the charts:
output$chartCostByYear <- renderHighchart({
hchart(data_charts(), "area", hcaes(x = as_factor(month), y = total_cost), color = "#800000", name = "Total Cost") |>
hc_title(text = "Total Cost by Month", align = "left") |>
hc_xAxis(title = list(text = "")) |>
hc_yAxis(title = list(text = "Total Cost")) %>%
hc_plotOptions(
area = list(
marker = list(
enabled = FALSE
)
)
)
})
```
Next, we also had a visual for the distance by month with a drill down by day of the week. This required abit more of a complicated pipeline, which diverged from the `data_charts()` reactive object, therefore the following two objects were created and then called in the cdistance by year chart:
```{r, eval=FALSE}
# Rective data for the drill down chart:
drill_down_chart_base_data <- reactive({
trips %>%
filter(STATUS == "completed" & !is.na(STARTED_AT)) %>%
mutate(STARTED_AT = substr(STARTED_AT,start=1,stop=19),
COMPLETED_AT = substr(COMPLETED_AT,start=1,stop=10)) %>%
mutate(start_date = lubridate::as_datetime(STARTED_AT),
end_date = lubridate::as_datetime(COMPLETED_AT),
day_of_week = wday(start_date, label = TRUE),
month = month(start_date, label = TRUE),
year=year(start_date),
quarter=quarter(start_date)) %>%
filter(between(year, as.integer(input$inYearMin), as.integer(input$inYearMax)),
quarter %in% input$inQuarter) %>%
select(month, DISTANCE_METERS) %>%
group_by(month) %>%
summarise(total_distance = sum(DISTANCE_METERS)/1000) %>%
ungroup() %>%
mutate(label = scales::number(total_distance,scale=2,suffix = " Km"))
})
drilldown_chart_drilldown_data <- reactive({
trips %>%
filter(STATUS == "completed" & !is.na(STARTED_AT)) %>%
mutate(STARTED_AT = substr(STARTED_AT,start=1,stop=19),
COMPLETED_AT = substr(COMPLETED_AT,start=1,stop=19)) %>%
mutate(start_date = lubridate::as_datetime(STARTED_AT),
end_date = lubridate::as_datetime(COMPLETED_AT),
day_of_week = wday(start_date, label = TRUE),
month = month(start_date, label = TRUE),
year = year(start_date),
quarter = quarter(start_date)) %>%
mutate(time = as.integer(difftime(end_date,start_date,units = "mins"))) %>%
filter(between(year, as.integer(input$inYearMin), as.integer(input$inYearMax)),
quarter %in% input$inQuarter) %>%
select(month, day_of_week, DISTANCE_METERS,COST_AMOUNT_CENTS,time) %>%
mutate(total_distance = DISTANCE_METERS/1000,
total_cost = COST_AMOUNT_CENTS/100,
total_time = time/60,
speed = ((DISTANCE_METERS/1000)/time)*60) %>%
group_by(month,day_of_week) %>%
summarise(total_distance = sum(total_distance)) %>%
ungroup() %>% group_nest(month) %>%
mutate(
id = month,
type = "column",
data = map(data, mutate, name = day_of_week, y = round(total_distance,2)),
data = map(data, list_parse)
)
})
# Rendering the distance by year chart:
output$chartDistByYear <- renderHighchart({
hchart(
drill_down_chart_base_data(),
"column",
hcaes(x = month, y = round(total_distance,2), drilldown = month),
name = "Total Distance"
) %>%
hc_drilldown(
allowPointDrilldown = TRUE,
series = list_parse(drilldown_chart_drilldown_data())
) |>
hc_title(text = "Total Distance", align = "left") |>
hc_xAxis(title = list(text = "")) |>
hc_yAxis(title = list(text = "Distance")) %>%
hc_colorAxis(minColor = "#762a83",
maxColor="#1b7837") %>%
hc_legend(enabled = FALSE) %>%
hc_tooltip(
pointFormat = "<b>{point.y:.2f} Km</b>"
)
})
```
Similarly, the heatmap was created using a separate dataframe. This is because it had to be geocoded, to find the associated postcodes for the coordinates. That data is structured as follows:
```{r}
to_map %>%
select(-ends_with("_date"),-address_found)
```
Next, we made the data frame reactive and piped that through to the heatmap chart:
```{r, eval=FALSE}
# Reactive data for the heatmap:
to_map_data <- reactive({
to_map %>%
filter(
between(year, as.integer(input$inYearMin), as.integer(input$inYearMax)),
quarter %in% input$inQuarter)
})
# Rendering the heatmap chart:
output$tripMap <- renderHighchart({
to_map_data() %>%
leaflet() %>%
addTiles() %>%
addHeatmap(~END_LONGITUDE,~END_LATITUDE,blur = 20,
group = "Heatmap") %>%
addMarkers(~END_LONGITUDE,~END_LATITUDE,label=~htmlEscape(postcode),
clusterOptions = markerClusterOptions(),
group = "Point") %>%
addLayersControl(
overlayGroups = c("Heatmap","Point"),
options = layersControlOptions(collapsed = FALSE))
})
```
Finally, the last chart included the modelling of the cost by the speed. Unfortunately, the `loess()` method was not compatible with Shiny reactive data frames, therefore the data was modelled at the beginning then plotted with the according filters:
```{r,eval=FALSE}
# Reactive data for the modelled chart:
to_plot_model_data <- reactive({
to_plot_model %>%
filter(
between(year, as.integer(input$inYearMin), as.integer(input$inYearMax)),
quarter %in% input$inQuarter)
})
# Rendering the modelled chart:
output$modelledCost <- renderHighchart({
hchart(to_plot_model_data(),
type = "spline",
hcaes(x = speed, y = .fitted),
name = "Estimated Cost",
id = "fit",
lineWidth = 1,
color = "#1F77B4",
showInLegend = TRUE # You can change this color as desired
) |>
hc_add_series(to_plot_model_data(),
type = "arearange",
name = "Confidence Interval",
hcaes(x = speed, low = .fitted - 1.04*.se, high = .fitted + 1.04*.se),
linkedTo = "fit",
color = hex_to_rgba("indianred", 0.2), # Semi-transparent color matching the line
zIndex = -1
) %>%
hc_xAxis(title = list(text = "Speed (Km/hr)")) |>
hc_yAxis(title = list(text = "Cost")) |>
hc_title(text = "Estimated Cost by Speed")%>%
hc_tooltip(
crosshairs = TRUE,
borderWidth = 5,
sort = TRUE,
table = TRUE,
style = list(
fontSize = "10px"
)
)
})
```
If we bring all the components together, we get the following:
```{r, eval=FALSE}
server <- function(input, output) {
data_cards <- reactive({
trips1 %>%
filter(
between(year, as.integer(input$inYearMin), as.integer(input$inYearMax)),
quarter %in% input$inQuarter
) %>%
summarise(
totalRides = sum(total_rides),
totalCost = sum(total_cost),
totalTime = sum(total_time),
totalDist = sum(total_dist)
)
})
data_charts <- reactive({
trips1 %>%
filter(
between(year, as.integer(input$inYearMin), as.integer(input$inYearMax)),
quarter %in% input$inQuarter
) %>%
group_by(month) %>%
summarise(
total_cost = round(sum(total_cost), 1),
total_dist = round(sum(total_dist), 1)
)
})
drill_down_chart_base_data <- reactive({
trips %>%
filter(STATUS == "completed" & !is.na(STARTED_AT)) %>%
mutate(STARTED_AT = substr(STARTED_AT,start=1,stop=19),
COMPLETED_AT = substr(COMPLETED_AT,start=1,stop=10)) %>%
mutate(start_date = lubridate::as_datetime(STARTED_AT),
end_date = lubridate::as_datetime(COMPLETED_AT),
day_of_week = wday(start_date, label = TRUE),
month = month(start_date, label = TRUE),
year=year(start_date),
quarter=quarter(start_date)) %>%
filter(between(year, as.integer(input$inYearMin), as.integer(input$inYearMax)),
quarter %in% input$inQuarter) %>%
select(month, DISTANCE_METERS) %>%
group_by(month) %>%
summarise(total_distance = sum(DISTANCE_METERS)/1000) %>%
ungroup() %>%
mutate(label = scales::number(total_distance,scale=2,suffix = " Km"))
})
drilldown_chart_drilldown_data <- reactive({
trips %>%
filter(STATUS == "completed" & !is.na(STARTED_AT)) %>%
mutate(STARTED_AT = substr(STARTED_AT,start=1,stop=19),
COMPLETED_AT = substr(COMPLETED_AT,start=1,stop=19)) %>%
mutate(start_date = lubridate::as_datetime(STARTED_AT),
end_date = lubridate::as_datetime(COMPLETED_AT),
day_of_week = wday(start_date, label = TRUE),
month = month(start_date, label = TRUE),
year = year(start_date),
quarter = quarter(start_date)) %>%
mutate(time = as.integer(difftime(end_date,start_date,units = "mins"))) %>%
filter(between(year, as.integer(input$inYearMin), as.integer(input$inYearMax)),
quarter %in% input$inQuarter) %>%
select(month, day_of_week, DISTANCE_METERS,COST_AMOUNT_CENTS,time) %>%
mutate(total_distance = DISTANCE_METERS/1000,
total_cost = COST_AMOUNT_CENTS/100,
total_time = time/60,
speed = ((DISTANCE_METERS/1000)/time)*60) %>%
group_by(month,day_of_week) %>%
summarise(total_distance = sum(total_distance)) %>%
ungroup() %>% group_nest(month) %>%
mutate(
id = month,
type = "column",
data = map(data, mutate, name = day_of_week, y = round(total_distance,2)),
data = map(data, list_parse)
)
})
to_map_data <- reactive({
to_map %>%
filter(
between(year, as.integer(input$inYearMin), as.integer(input$inYearMax)),
quarter %in% input$inQuarter)
})
to_plot_model_data <- reactive({
to_plot_model %>%
filter(
between(year, as.integer(input$inYearMin), as.integer(input$inYearMax)),
quarter %in% input$inQuarter)
})
output$outNRides <- renderText({
scales::comma(data_cards()$totalRides)
})
output$outTotalCost <- renderText({
paste0("Β£",scales::comma(round(data_cards()$totalCost,2)))
})
output$outTotalTime <- renderText({
paste0(round(data_cards()$totalTime)," Hrs.")
})
output$outTotalDist <- renderText({
paste0(scales::comma(round(data_cards()$totalDist))," Km")
})
output$chartDistByYear <- renderHighchart({
hchart(
drill_down_chart_base_data(),
"column",
hcaes(x = month, y = round(total_distance,2), drilldown = month),
name = "Total Distance"
) %>%
hc_drilldown(
allowPointDrilldown = TRUE,
series = list_parse(drilldown_chart_drilldown_data())
) |>
hc_title(text = "Total Distance", align = "left") |>
hc_xAxis(title = list(text = "")) |>
hc_yAxis(title = list(text = "Distance")) %>%
hc_colorAxis(minColor = "#762a83",
maxColor="#1b7837") %>%
hc_legend(enabled = FALSE) %>%
hc_tooltip(
pointFormat = "<b>{point.y:.2f} Km</b>"
)
})
output$chartCostByYear <- renderHighchart({
hchart(data_charts(), "area", hcaes(x = as_factor(month), y = total_cost), color = "#800000", name = "Total Cost") |>
hc_title(text = "Total Cost by Month", align = "left") |>
hc_xAxis(title = list(text = "")) |>
hc_yAxis(title = list(text = "Total Cost")) %>%
hc_plotOptions(
area = list(
marker = list(
enabled = FALSE
)
)
)
})
output$tripMap <- renderHighchart({
to_map_data() %>%
leaflet() %>%
addTiles() %>%
addHeatmap(~END_LONGITUDE,~END_LATITUDE,blur = 20,
group = "Heatmap") %>%
addMarkers(~END_LONGITUDE,~END_LATITUDE,label=~htmlEscape(postcode),
clusterOptions = markerClusterOptions(),
group = "Point") %>%
addLayersControl(
overlayGroups = c("Heatmap","Point"),
options = layersControlOptions(collapsed = FALSE))
})
output$modelledCost <- renderHighchart({
hchart(to_plot_model_data(),
type = "spline",
hcaes(x = speed, y = .fitted),
name = "Estimated Cost",
id = "fit",
lineWidth = 1,
color = "#1F77B4",
showInLegend = TRUE # You can change this color as desired
) |>
hc_add_series(to_plot_model_data(),
type = "arearange",
name = "Confidence Interval",
hcaes(x = speed, low = .fitted - 1.04*.se, high = .fitted + 1.04*.se),
linkedTo = "fit",
color = hex_to_rgba("indianred", 0.2), # Semi-transparent color matching the line
zIndex = -1
) %>%
hc_xAxis(title = list(text = "Speed (Km/hr)")) |>
hc_yAxis(title = list(text = "Cost")) |>
hc_title(text = "Estimated Cost by Speed")%>%
hc_tooltip(
crosshairs = TRUE,
borderWidth = 5,
sort = TRUE,
table = TRUE,
style = list(
fontSize = "10px"
)
)
})
}
```
We call the UI and Server components to create the app using the shinyApp function.
```{r,eval=FALSE}
shinyApp(ui = ui, server = server)
```
# Part 3: Styling the App
To round off the app and make it look more professional, we added some custom CSS styling to the app. These included the font to be used, the background colors and the specifications for the `cards`, which we call in the UI component. The specifications are outlined below:
```{css,eval=FALSE}
@import url('https://fonts.googleapis.com/css2?family=Poppins:ital,wght@0,700;1,400&display=swap');
* {
margin: 0;
padding: 0;
box-sizing: border-box;
}
body {
font-family: 'Poppins', sans-serif;
font-weight: 400;
}
.main-container {
padding-top: 1rem;
}
.stat-card-container {
display: flex;
justify-content: space-between;
column-gap: 1rem;
}
.stat-card {
border: 2px solid #f2f2f2;
border-bottom: 2px solid #0198f9;
width: 100%;
padding: 0.5rem 0 0.5rem 1rem;
}
.stat-card > p {
text-transform: uppercase;
color: #808080;
}
.stat-card > div.shiny-text-output {
font-size: 3rem;
font-weight: 700;
}
.card-container {
padding-top: 2rem;
}
.base-charts-container {
display: flex;
justify-content: space-between;
column-gap: 1rem;
}
.chart-card {
border: 2px solid #f2f2f2;
width: 50%;
}
.chart-card-full {
width: 100%;
}
```
The styling options were tucked away in a `www` folder in the app directory, as a `styles.css` file, such that it could be identified by the app when rendering. That's it for this blog post! There was a lot more that could have been done in terms of themeing and styling, but you get the idea. [Don't forget to visit the Shiny app!](https://nind.shinyapps.io/LimexFoothi/)
Finally, we have to create the UI components for the visualisations. This is also specified in the
